Chevron
cleated
Conveyor belt
Created for smooth performance while carrying the brunt of a load. Making sure your operations stays flawless through years of the most intense conditions.
Created for smooth performance while carrying the brunt of a load. Making sure your operations stays flawless through years of the most intense conditions.
With over 100 cleat configurations, multiple cleat dimensions, and several cleat materials, we can provide a chevron conveyor belt replacement to

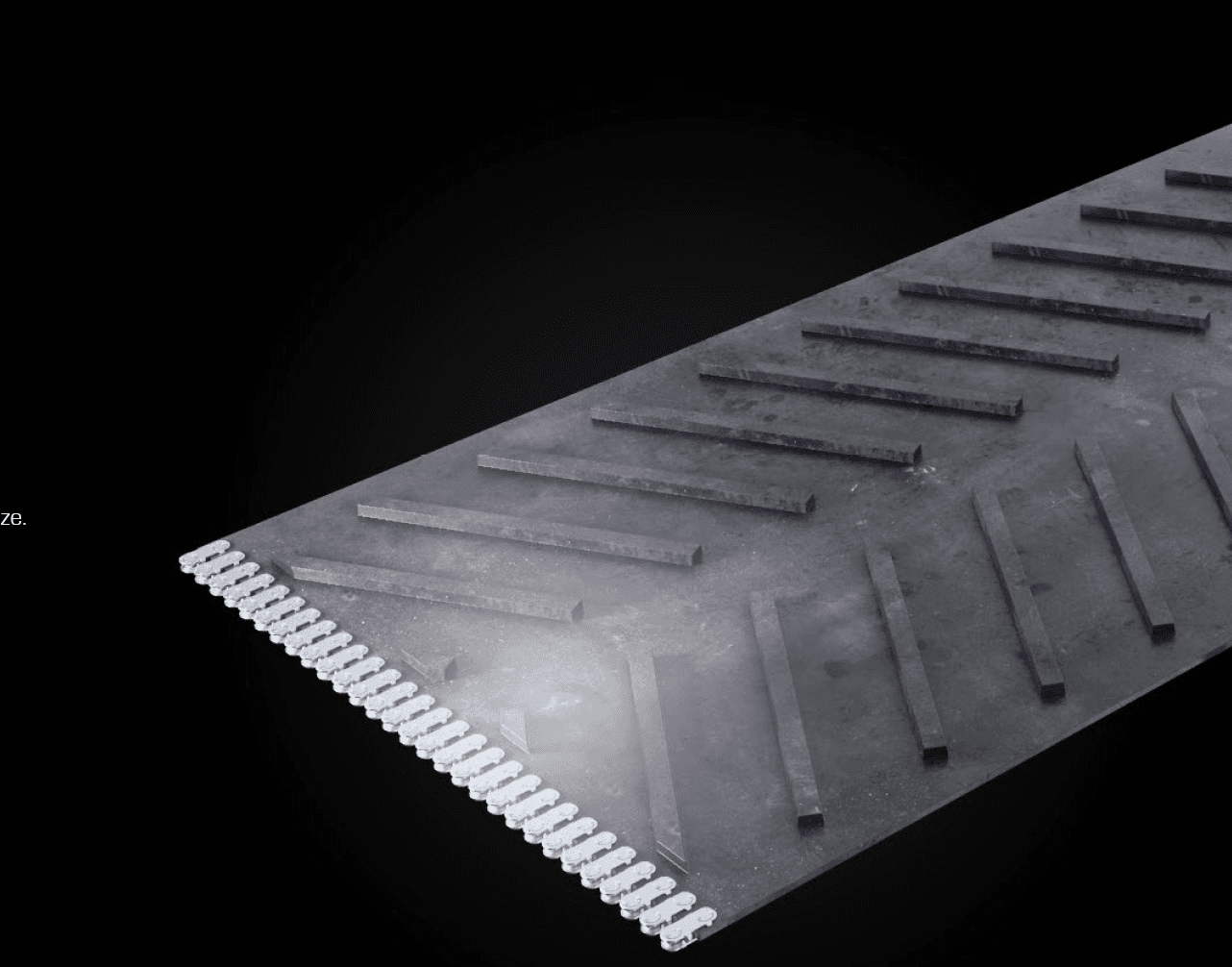

Chevron cleated conveyor belts are distinguished by cleats that form a V-shaped (chevron) pattern.
The cleats create pockets to hold and transport loose materials along the conveyor. With
Our chevron cleated belts are made from PVC and high-grade rubber compounds that offer tear resistance, fatigue resistance, material stability, and maximum strength.
The go-to solution for loose items
and wet or bulk materials.
A chevron cleat design enhances the conveyor belt's ability to transport materials at steep inclines, prevent product loss from the belt edges, and maintain consistent spacing between items.Chevron conveyor belts are the go-to solution for loose items and wet or bulk materials. They feed and transport recyclable materials, aggregates, food products, and more.
Our chevron cleated chain belts include the following options and features:
(Please note that not all belts can be configured with each option.)
48, 60, 72, 84 inches. Larger widths require vertical splicing.
Rubber, neoprene, nitrile (FDA/USDA), SBR, butyl, PVC, and polyurethane, black standard high abrasion resistant (SBR) rubber, black heat resistant (HR) rubber, black moderately oil resistant (MOR) and super oil resistant (SOR) rubber, white FDA rubber, black flame retardant (FR) rubber, other compounds meeting specific DIN standards available.
1-ply, 2-ply, 3-ply, and 4-ply belt thicknesses. Additional options available.
chevron, multi-chevron, Open V, Closed V, bullhorn, herringbone, and many more.
Black standard, black oil resistant, black high heat resistant, black flame retardant (FR), black high oil resistant, white oil and fat resistant, (FDA) compounds, rubber and PVC compounds, nitrile, PVC, EPDM, angle steel.
2–4 inches. 1/4–3/8 inch thick angles. Flat bar cleats are also available.
Rivet plate and hinged, bolt hinged and plate, Superscrew, alligator hinges and clips, vulcanized, and recessed. Other mechanical and vulcanized splices available.
3–6 inches.
1/4, 3/8, 1/2 inch.
0.76–1 inch (inside diameter) x 1.12–1.38 inch (outside diameter).
3/4 and 1 inch.
2 1/16, 3 1/2, 3, 4, 5 inches.
C-channel, no wings, top impact shoes, formed trapezoids, inverted angle (used for keeping hot materials off the belt).
Fluent Conveyors carries the following additional types of cleated belts
We build our conveyors to handle the most extreme applications, including scrap, recycling, waste, and other harsh environments.
