Cleated
Conveyor belt
Created for smooth performance while carrying the brunt of a load. Making sure your operations stays flawless through years of the most intense conditions.
Created for smooth performance while carrying the brunt of a load. Making sure your operations stays flawless through years of the most intense conditions.

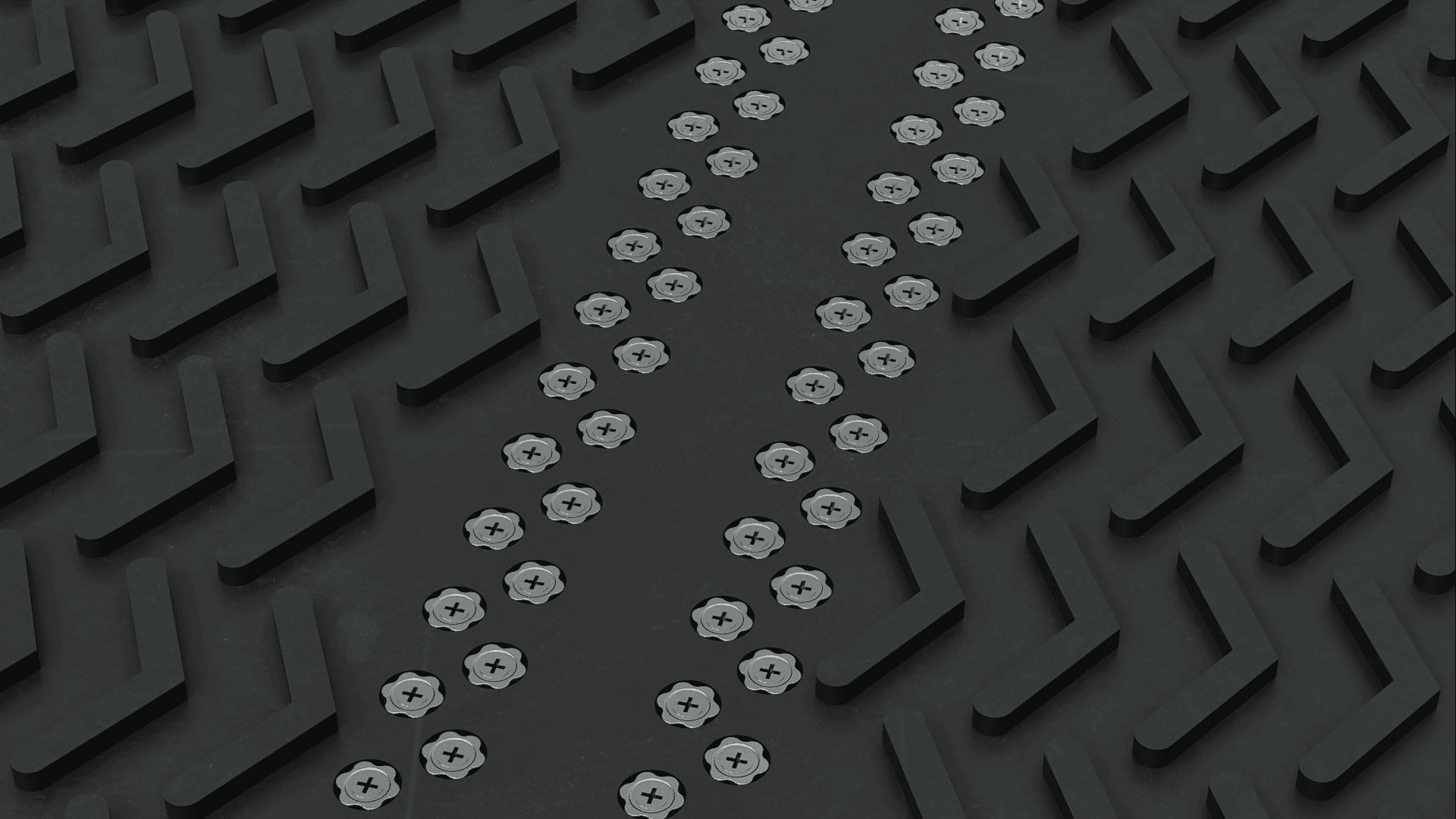

With over 100 cleat configurations, multiple cleat dimensions, and several cleat materials, we can provide a chevron conveyor belt replacement to
Cleated conveyor belts feature evenly spaced protrusions (cleats) attached or molded to the surface of the belt. Flat belts, incline belts, and troughed belts can be enhanced with cleats. We supply cleated belts for flat idler, trough idler, slider bed, trough slider bed, and roller chain conveyors.
With over 100 cleat configurations, multiple cleat dimensions, and several cleat materials, we can provide a cleated conveyor belt replacement to meet your material-handling needs.
Cleated conveyors belts feature evenly spaced protrusions (cleats) attached or molded to the surface of the belt. Flat belts, incline belts, and troughed belts can be enhanced with cleats. We supply cleated belts for flat idler, trough idler, slider bed, trough slider bed, and roller chain conveyors
The go-to solution for loose items
and wet or bulk materials.
Cleats enhance the conveyor belt's ability to transport materials at steep inclines, prevent product loss from the belt edges, and maintain consistent spacing between items.Cleated belts are the go-to solution for loose items and wet or bulk materials. They feed and transport recyclable materials, aggregates, food products, and more.
Our cleated belts are made of rubber, PVC, and other high-grade compounds that offer tear resistance, fatigue resistance, material stability, and maximum strength.
Our cleated chain belts include the following features:
Optional c-channel reinforcement
Belt cover compounds such as rubber, neoprene, nitrile, SBR, butyl, PVC, and polyurethane
Longitudinal vulcanized, diagonal vulcanized, finger vulcanized, step vulcanization belt splicing, and other durable splice options
1, 2, 3, and 4-ply belt thicknesses
Over 100 cleat designs
(Please note that not all belts can be configured with each option.)
48, 60, 72, 84 inches. Larger custom widths require vertical splicing.
Rubber, neoprene, nitrile (FDA/USDA), SBR, butyl, PVC, and polyurethane. Includes black standard high abrasion resistant (SBR) rubber, black heat resistant (HR) rubber, black moderately oil resistant (MOR) and super oil resistant (SOR) rubber, white FDA rubber, black flame retardant (FR) rubber, and other compounds meeting specific DIN standards. For roller chain conveyors, options include steel and rubber combo belting.
Black standard, black oil resistant, black high heat resistant, black flame retardant (FR), black high oil resistant, white oil and fat resistant (FDA), rubber and PVC compounds, nitrile, PVC, EPDM, and angle steel.
1-ply, 2-ply, 3-ply, and 4-ply belt thicknesses. Additional options available.
2–4 inches. 1/4–3/8-inch thick angles. Flat bar cleats are also available.
6, 9, and 12 inches.
Plain, chevron, multi-chevron, Open V, Closed V, bullhorn, herringbone, and other custom patterns.
Monofilament cross-rigid ply, fiberglass cross-rigid ply, and steel breaker cross-rigid ply.
Rivet plate and hinged, bolt hinged and plate, Superscrew, alligator hinges and clips, vulcanized, and recessed. Other mechanical and vulcanized splices are available.
3–6 inches.
1/4, 3/8, and 1/2 inch.
0.76–1 inch (inside diameter) x 1.12–1.38 inch (outside diameter).
3/4 and 1 inch.
2 1/16, 3 1/2, 3, 4, and 5 inches.
Options for upgraded chains, C-channel, no wings, top impact shoes, formed trapezoids, inverted angle (for hot materials), larger rollers, and more.
Let us know which conveyor type you have, and the following parameters. If you're not sure, contact our engineering team , and we can help you figure it out.
From roller chain belts to heavy-duty integrally molded belts, Fluent Conveyors carries conveyor belt types for every application.
We build our conveyors to handle the most extreme applications, including scrap, recycling, waste, and other harsh environments.
