Roller chain specs

• Capacities: 9,000 to 25,000 lbs chain pull
• Belt widths: 18" to 96"
• Roller chain belt options: rubber, PVC, steel hinged, apron pan, z-pan
• Speed: variable up to 200 ft/min
• Inclines: up to 35 degrees
• Drives: 5HP to 25HP, shaft mounted
• Safety: guarding, e-stops, pull cords
• Control: PLCs, HMIs, custom control systems
• Chain pitch: 4", 6", 9" pitch. 12" pitch for select belts.
• Rollers: 3", 4", 5" diameters

Flat idler specs

• Speed: up to 600 FPM center drive; 1000 FPM end drive
• Pulleys: wing, bent, snub, take-up, and drive pulley options
• Belt widths: 18" to 72"
• Belts: PVC, rubber, urethane
• Idler diameters: 5" and 6"
• Loading: 10-15 PSF on returns; 40-120 PSF on troughed sections
• Control: PLCs, HMIs, and custom control panels

Sort station specs

• Widths: 24" to 60"
• Speed: variable from 50 to 400 FPM
• Safety: pull cords, e-stops, dead man switches
• Control: PLCs, HMIs, and custom control panels
• Belts: PVC, urethane, plastic modular

Our conveyor manufacturing process

Our single-stream recycling conveyors are designed and manufactured in the USA to CEMA standards and tolerances.

• Precision components such as cold-rolled steel shafts and flame-hardened sprockets
• Designed for simple maintenance access and component serviceability
• Goodyear, Flexco belt options resistant to rips, tears, and impacts
• Baldor, Leeson, Toshiba TEFC motors selected for 24/7 operation
• All systems fabricated by certified welders for structural integrity
• Premium bearings sized for L10 life ratings, made in USA
• Dodge, Nord, SEW drives matched to application torque
• Formed using heavy duty steel plate, rectangular tubing, and structural channel
• ASTM A36 steel for fabrication per structural code
• All hardware is grade 8 for maximum strength
• Painted with industrial grade powder coating for durability
• Extensively tested and inspected prior to shipment

• 3/16" and 1/4" thick structural steel frames to prevent flexing
• 25-35 pound rail track to withstand heavy loads

Our single-stream recycling conveyors deliver exceptional durability, strength, and longevity, year after year.

Single-stream recycling simplifies the recycling process by allowing consumers to place all recyclables into one bin without sorting.

Single-stream can increase recycling rates, but it creates a larger challenge for recycling facilities, which face additional sorting and processing steps.

1. Single-stream systems grew from 29% to 80% in American communities between 2005 and 2014.
2. Single-stream recycling has been criticized for producing low-quality recycled materials and higher contamination levels, which can impact its potential value

This system relies heavily on sorting technology to separate different materials effectively. Conveyors play a vital role in this process.

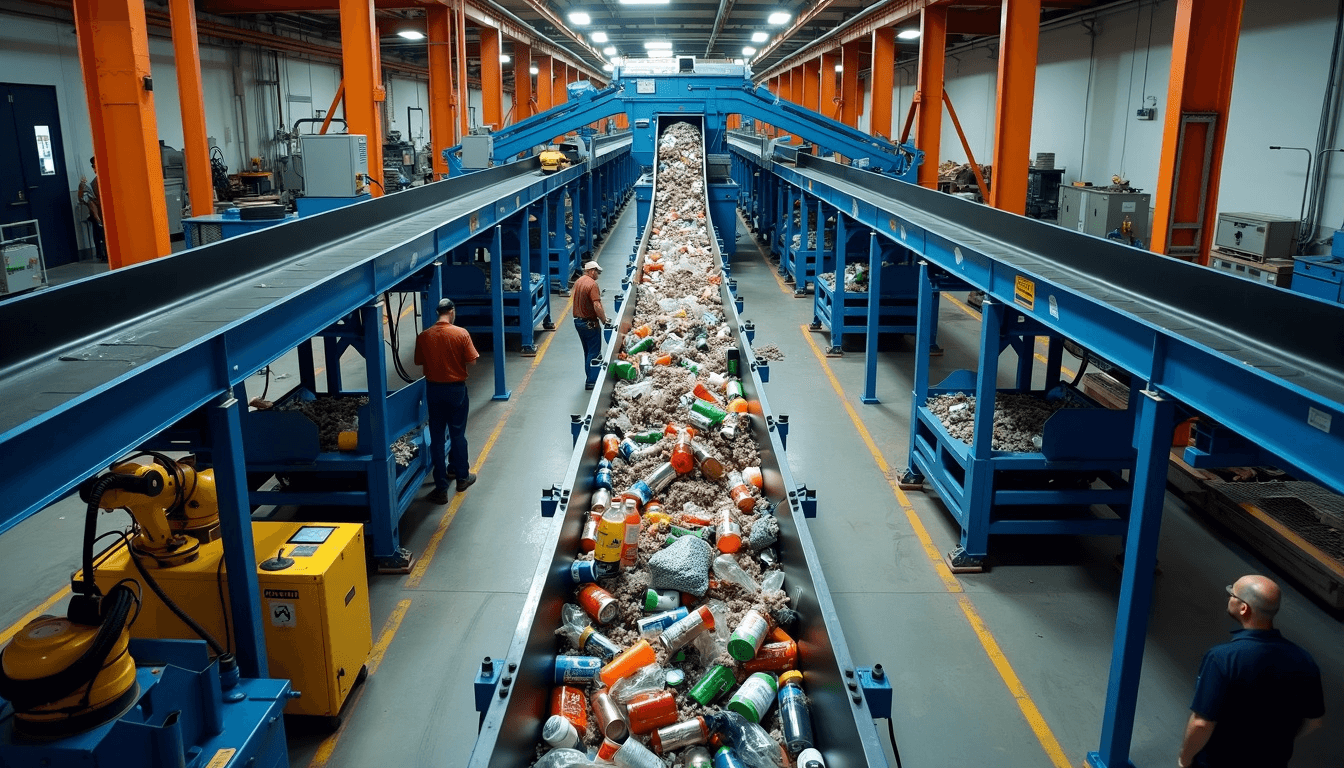

As recyclables move through a single-stream recycling facility, conveyors transport materials to sorting stations.

Manual sorting, air blowers, magnets, and infrared sensors are used to separate paper, plastics, metals, and other materials. Conveyor belts can be equipped with advanced sorting technology, such as optical sorters, to effectively separate different materials, thus improving the quality of the recycling output and enhancing profitability.
