Plain cleated belt replacements for conveyors
Fluent Conveyors offers plain cleatedreplacement belts to keep your conveyor running smoothly.
Plain cleated belt modification options
( Please note that not all belts can be configured with each option. Contact our engineering team for specific options. )
Belt width
48, 60, 72, 84 inches. Larger custom widths require longitudinal splices.
Base belt material
Rubber, neoprene, nitrile (FDA/USDA), SBR, butyl, PVC, and polyurethane. Additional options available.
Belt ply
1, 2, 3, and 4-ply belt thicknesses. Additional options available.
Cross-rigid ply
Monofilament cross-rigid ply, fiberglass cross-rigid ply, steel breaker cross-rigid ply.
Cleat height
1–8 inches (25–200 mm).
Splice
Rivet plate and hinged, bolt hinged and plate, Superscrew, alligator hinges and clips, vulcanized, and recessed.
Side wing height
3–6 inches.
Side bars thickness
1/4, 3/8, and 1/2 inch.
Hardened bushing sizes
0.76–1 inch (inside diameter) x 1.12–1.38 inch (outside diameter).
Required measurements for ordering plain cleated belts
Belt specs
- Pan thickness
- Belt width (inside sealing wings)
- Belt width (overall width)
- Roller spacing
- Belt length
Sidebar
- Chain pitch
- Side bar width
- Side bar thickness
- Single or double-row designation
Roller specs
- Roller diameter
- Flange roller diameter (if applicable)
- Roller width
- Overall roller width (includes flanged roller)
Cleat specs
- Cleat height (angle iron shown)
- Cleat thickness
- Total length
- Offset from sealing wing
Sealing wings
- Sealing wing height
- Sealing wing thickness
Belt underside
- Support type/size
- Support spacing
- Support length
Belt underside support
- Wear pad thickness
- Wear pad quantity
- Wear pad spacing
- Wear pad location
- Wear pad size
Collect the following measurements for your cleated belt conveyor. If you're not sure, talk to our engineering team, and we can help you figure it out.
Get in touch with us if you need help choosing the right belt size or picking the right belt
About plain cleated belts

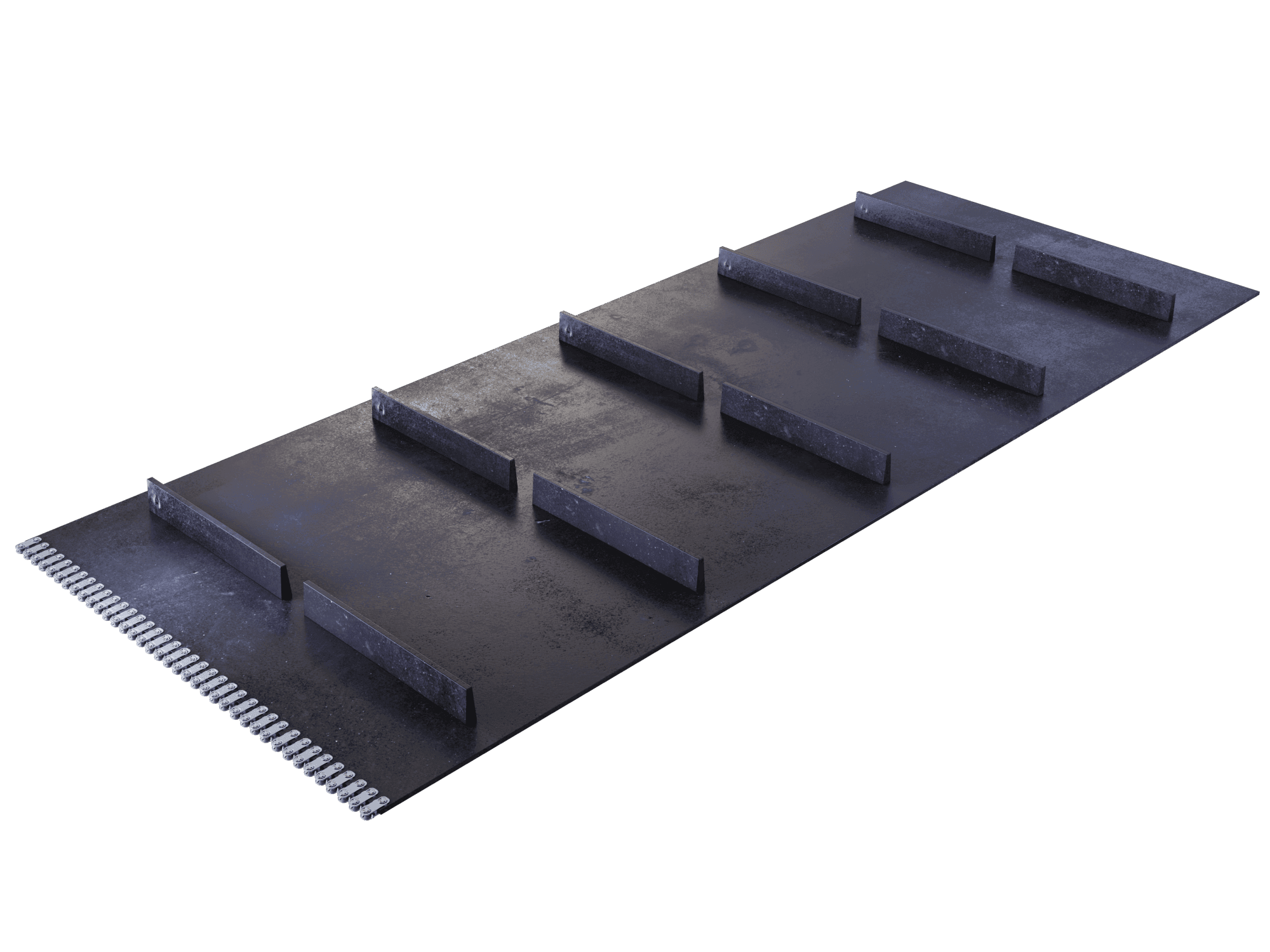

Plain cleated conveyor belts feature evenly spaced protrusions (cleats) attached or integrally molded to the belt surface. Plain cleats run perpendicular to the belt length, dividing the belt into sections. They contain loose, bulk materials on flat or incline conveyors.
While plain cleats are common on flat belt conveyors, all our conveyors can use plain cleated belts, including radial stackers, flat idlers, trough idlers, slider beds, trough slider beds, and roller chain conveyors.
Industries and applications
Plain cleated belts efficiently transport materials up steep inclines, prevent loose materials from rolling backward, and maintain consistent spacing between products.Cleated belts are the go-to solution for loose, wet, or bulk materials. They feed and move recyclable materials, aggregates, food products, and more.
Typical applications | Common industries |
|
|
What are plain cleated belts made of?
Our plain cleated belts are made of rubber, PVC, and other high-grade compounds that offer tear resistance, fatigue resistance, material stability, and maximum strength.
Key features
Our plain cleated chain belts include the following features:
- Optional C-channel reinforcement
- Excellent abrasion resistance
- Belt cover compounds such as food-grade rubber, neoprene, nitrile, SBR, butyl, PVC, and polyurethane
- 1, 2, 3, and 4-ply belt thicknesses
- Longitudinal vulcanized, diagonal vulcanized, finger vulcanized, step vulcanization belt splicing, and other durable splice options
Cleated belts come in 6, 9, and 12-inch pitch options and belt widths up to 84 inches. Additional add-on options such as C-channel backing, sidewalls, and more.
types of cleated belts we offer
Fluent Conveyors carries the following additional types of cleated belts
Does Fluent Conveyors supply other conveyor components?
Fluent Conveyors provides all the necessary replacement components and parts to keep your Fluent conveyor running in peak condition.
Our conveyor replacement part offerings include:
- Sprockets. We supply exact replacement drive sprockets and chain sprockets machined to OEM specs. All sizes and capacities.
- Bearings. Standard-duty, heavy-duty, sleeve, and pillow block replacement bearings.
- Rollers. Impact and standard rollers from 1.9–5 inch diameters.
- Idlers, training rollers, and more. Larger diameter rollers are available on request.
- Impact beds. Improve your system's service life by maintaining its impact beds.
- Custom control systems. We can build and program custom PLCs and operator panels for your conveyor system.
- Pulleys. Lagged, wing, snub, bend, and take-up pulleys. Standard, self-aligning, and taper lock hubs.
- Scrapers. Keep your belt and drum free of obstructions.
- E-stops. Add custom emergency stop controls and other safety devices to your system.
- Oilers. Shatterproof and rugged oilers to keep chains lubricated.
- Belt scales. To accurately report throughput weight.
- Motors and drives. General-duty, severe-duty, chemical-duty, and stainless steel construction motors. Plus drivers and gearboxes.
- Shafts. Cold rolled and precision ground drive and take-up replacement shafts. With keyways, set screws, or taper locks.
We carry all standard wear parts, such as scrapers, electrical controls, switches, sensors, skirting, and safety devices. We can even create custom conveyor components as needed. Just contact us with your conveyor's model number and we'll supply the exact parts to get you up and running again quickly.
