Apron pan belt
Created for smooth performance while carrying the brunt of a load. Making sure your operations stays flawless through years of the most intense conditions.
$300.00 - $1750+
Created for smooth performance while carrying the brunt of a load. Making sure your operations stays flawless through years of the most intense conditions.
Fluent Conveyors offers apron pan roller chain replacement belts so your operation can keep

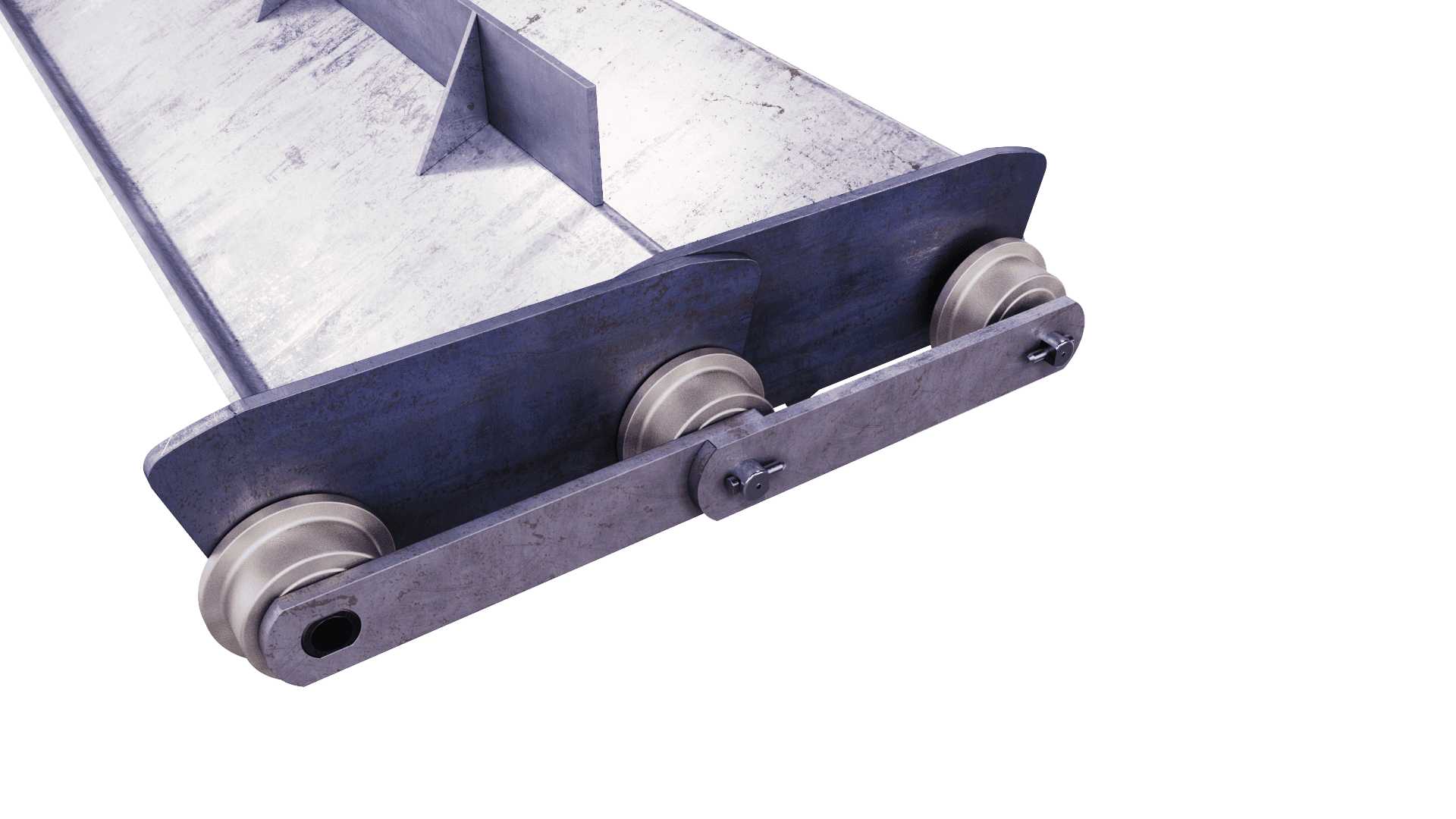

Apron pan conveyor belts are made of overlapping steel plates that mount to heavy-duty chains to form the conveying surface. These metal conveyor belts offer extreme durability, impact resistance, and temperature resistance.

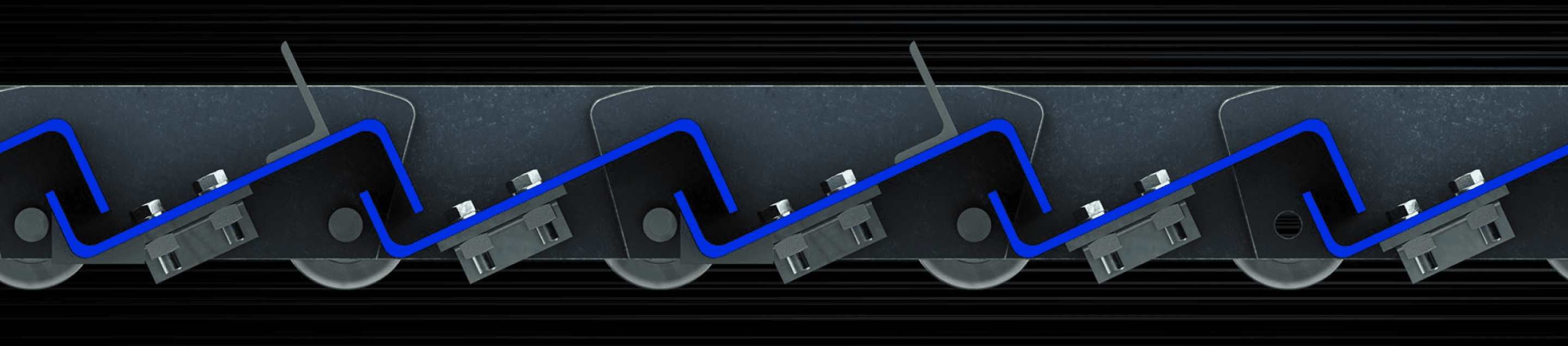

Our apron pan belts are double beaded for enhanced material capture and impact protection. Interlocking beads create shallow pockets for loose, bulk materials and absorb falling energy.
The pans' stainless steel construction

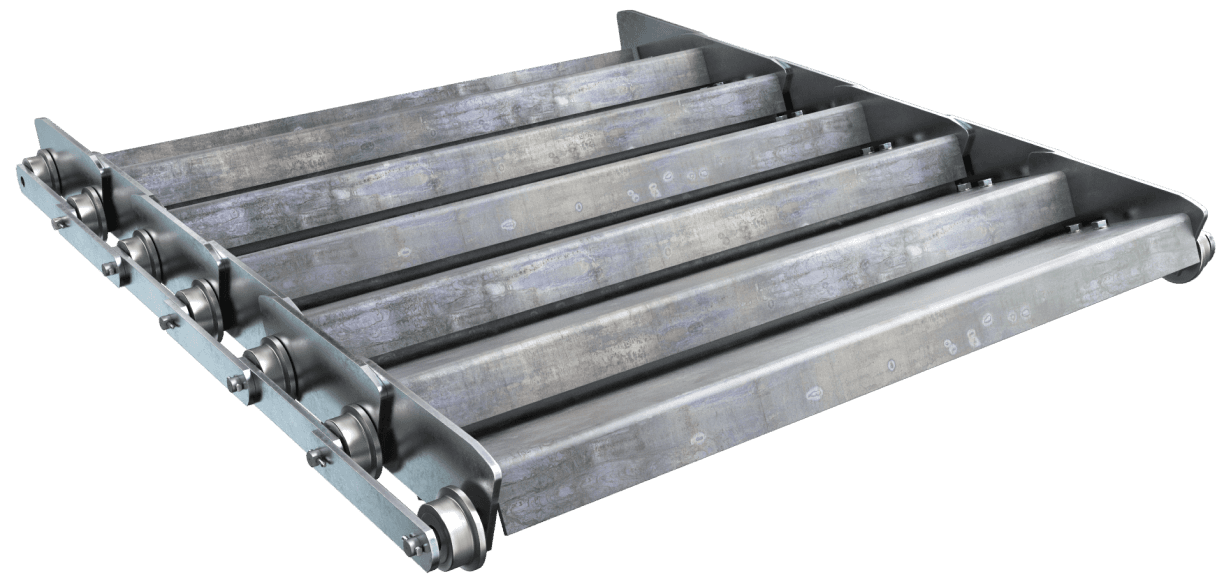

The apron pan design creates a sturdy, flat conveying surface. Apron pan belts handle heavy, large, or abrasive materials in challenging industrial environments, from large components in manufacturing facilities to abrasive metal scrap in recycling plants
(Apron conveyor belts are unsuitable for powders and fines, which wear away at metal-on-metal friction points, increase the risk of jams, and slip through the cracks between pans. For fines, try rubber combination belts.)
(Please note that not all belts can be configured with each option.)
48, 60, 72, 84, 96, 108 inches. Custom widths from 12–120 inches with all increments within that range.
2–4 inches. 1/4–3/8 inch thick angles. Flat bar cleats are also available.
6 and 9-inch options.
1/4, 3/8, 1/2 inch.
3–6 inches.
6,000, 9,000, 13,000, 14,000, and 25,000 lbs.
1/4, 3/8, 1/2 inch.
0.76–1 inch (inside diameter) x 1.12–1.38 inch (outside diameter).
3/4 and 1 inch.
2 1/16, 3 1/2, 3, 4, and 5 inches.

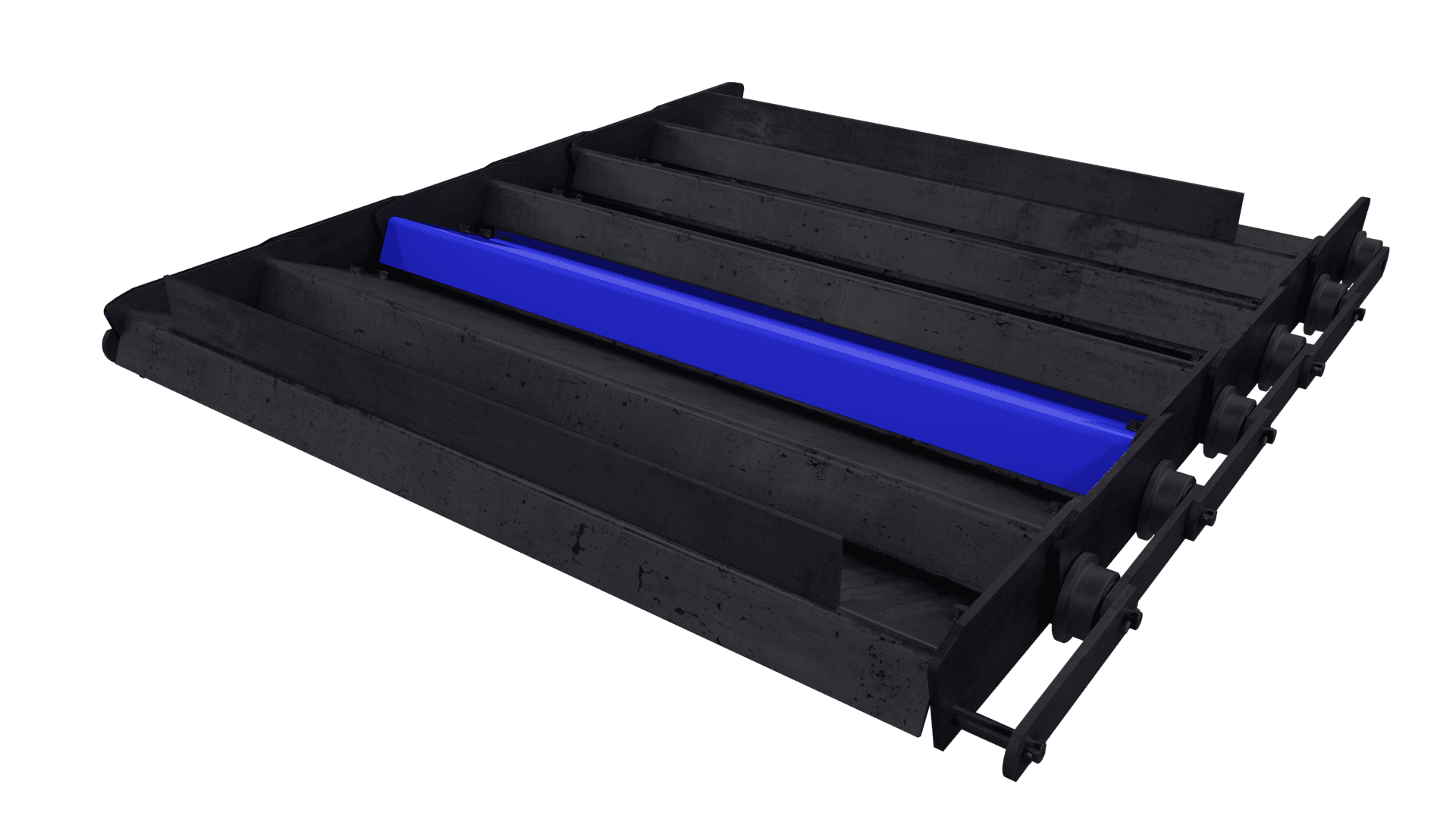

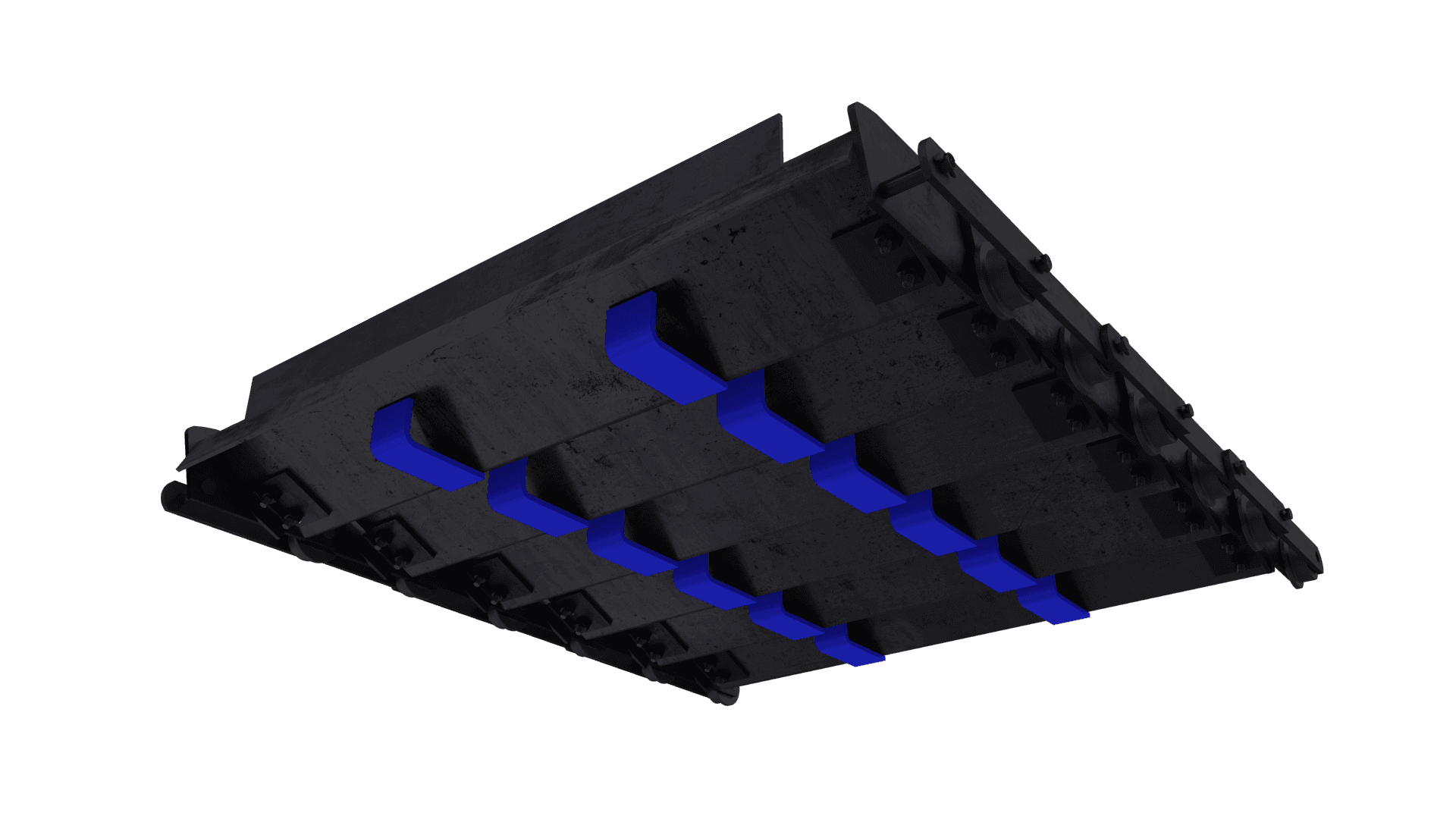

C-channel, no wings, top impact shoes, formed trapezoids, inverted angle (used for keeping hot materials off the belt).
Let us know which conveyor type you have, and the following parameters. If you're not sure, contact our engineering team , and we can help you figure it out.
Apron conveyor belts come in 6, 9, and 12-inch pitch diameters and standard belt widths up to 108 inches. Choose from 1/4–1/2-inch thick precision-formed beaded apron-style pans. Additional features include precision die-punched wings, single-flanged and sintered steel rollers, solid locking chain pins, and add-on options such as cleats, upgraded chains, C-channel backing, larger rollers, and more.
From roller chain belts to heavy-duty integrally molded belts, Fluent Conveyors carries conveyor belt types for every application.
Fluent Conveyors carries the following additional types of cleated belts
We build our conveyors to handle the most extreme applications, including scrap, recycling, waste, and other harsh environments.
