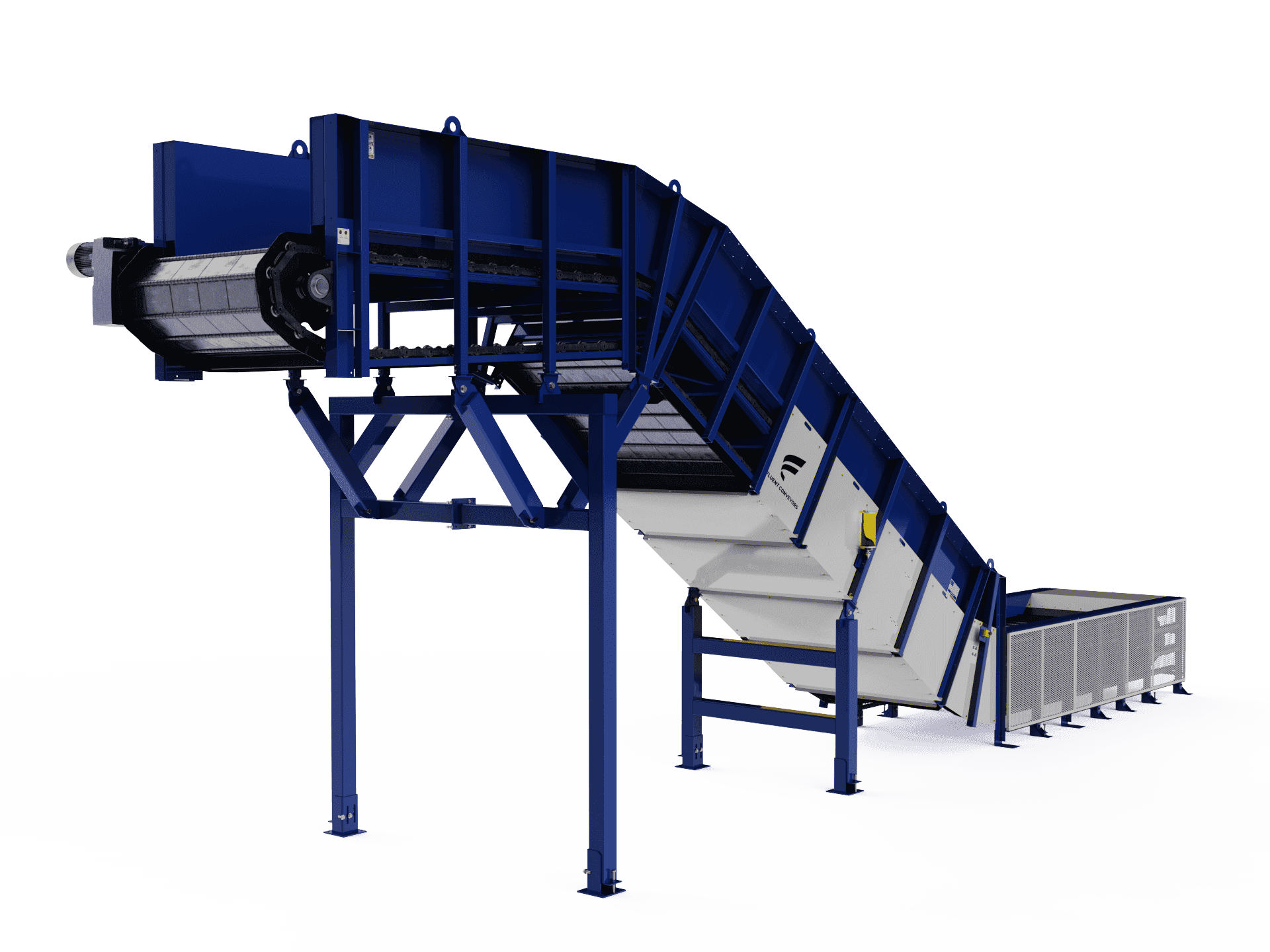

Roller chain specs

• Rollers: 3", 4", 5" diameters
• Speed: variable up to 200 ft/min
• Inclines: up to 35 degrees
• Drives: 5HP to 25HP, shaft mounted drives
• Safety: guarding, e-stops, pull cords
• Control: PLCs, HMIs, custom control systems
• Capacities: 9,000 to 25,000 lbs chain pull
• Belt widths: 18" to 96"
• Roller chain belt options: rubber, PVC, steel hinged, apron pan, z-pan
• Chain pitch: 4", 6", 9" pitch. 12" pitch for select belts.

Flat idler specs

• Speed: up to 600 FPM center drive; 1000 FPM end drive
• Pulleys: wing, bent, snub, take-up, and drive pulley options
• Control: PLCs, HMIs, and custom control panels
• Belt widths: 18" to 72"
• Belts: PVC, rubber, urethane
• Idler diameters: 5" and 6"
• Loading: 10-15 PSF on returns; 40-120 PSF on troughed sections

Sort station specs

• Widths: 24" to 60"
• Belts: PVC, urethane, plastic modular
• Speed: variable from 50 to 400 FPM
• Safety: pull cords, e-stops, dead man switches
• Control: PLCs, HMIs, and custom control panels

Our conveyor manufacturing process

Our metal recycling conveyors are designed and manufactured in the USA to CEMA standards and tolerances.

• Precision components such as cold-rolled steel shafts and flame-hardened sprockets
• All hardware is grade 8 for maximum strength
• Painted with industrial grade powder coating for durability
• Goodyear, Flexco belt options resistant to rips, tears, and impacts
• Baldor, Leeson, Toshiba TEFC motors selected for 24/7 operation
• All systems fabricated by certified welders for structural integrity
• Designed for simple maintenance access and component serviceability
• Extensively tested and inspected prior to shipment

• 3/16" and 1/4" thick structural steel frames to prevent flexing
• 25-35 pound rail track to withstand heavy loads
• ASTM A36 steel for fabrication per structural code
• Premium bearings sized for L10 life ratings, made in USA
• Dodge, Nord, SEW drives matched to application torque

• Formed using heavy duty steel plate, rectangular tubing, and structural channel

Our premium recycling conveyors deliver exceptional durability, strength, and longevity, year after year.

The metal recycling industry is a critical component of global waste management and resource conservation efforts.

Scrap metal recycling involves a variety of metals, including ferrous ones such as steel and iron, and non-ferrous ones like aluminum, copper, and brass. Each of these metals requires a specific approach for handling and processing.

Metal recycling reduces the need for virgin metal extraction and the environmental impact of metal production.

1. Recycling metals reduces habitat destruction and pollution from mining.
2. In 2021, about 69 percent of lead in the United States was recycled, followed by magnesium, with a recycling rate of approximately 57 percent.
3. Less than one-third of some 60 metals studied have an end-of-life recycling rate above 50 percent and 34 elements are below 1 percent recycling.
4. The recycling rate for steel cans was estimated to be 70.9 percent (1.1 million tons) in 2018.
5. The recycling of ferrous metals from durable goods was estimated to be 27.8 percent (4.7 million tons) in the same year.
6. As our world becomes increasingly reliant on technology, the challenge of recycling end-of-life products—especially cars and electronic waste—has grown. These products often comprise a mix of metals, plastics, and other components, making their recycling complex.
7. Less than one-third of some 60 metals studied have an end-of-life recycling rate above 50 percent, and 34 elements are below 1 percent recycling.
8. Many metals are crucial to clean technologies such as batteries for hybrid cars and the magnets in wind turbines.

Every year, the automobile recycling industry in the U.S. and Canada provides sufficient steel to produce roughly 13 million new vehicles.
