Roller chain specs

• Capacities: 9,000 to 25,000 lbs chain pull
• Belt widths: 18" to 96"
• Roller chain belt options: rubber, PVC, steel hinged, apron pan, z-pan
• Chain pitch: 4", 6", 9" pitch. 12" pitch for select belts.
• Rollers: 3", 4", 5" diameters
• Speed: variable up to 200 ft/min
• Inclines: up to 35 degrees
• Drives: 5HP to 25HP, shaft mounted
• Safety: guarding, e-stops, pull cords
• Control: PLCs, HMIs, custom control systems

Flat idler specs

• Speed: up to 600 FPM center drive; 1000 FPM end drive
• Control: PLCs, HMIs, and custom control panels
• Belt widths: 18" to 72"
• Belts: PVC, rubber, urethane
• Pulleys: wing, bent, snub, take-up, and drive pulley options
• Idler diameters: 5" and 6"
• Loading: 10-15 PSF on returns; 40-120 PSF on troughed sections

Sort station specs

• Widths: 24" to 60"
• Belts: PVC, urethane, plastic modular
• Speed: variable from 50 to 400 FPM
• Safety: pull cords, e-stops, dead man switches
• Control: PLCs, HMIs, and custom control panels

Our conveyor manufacturing process

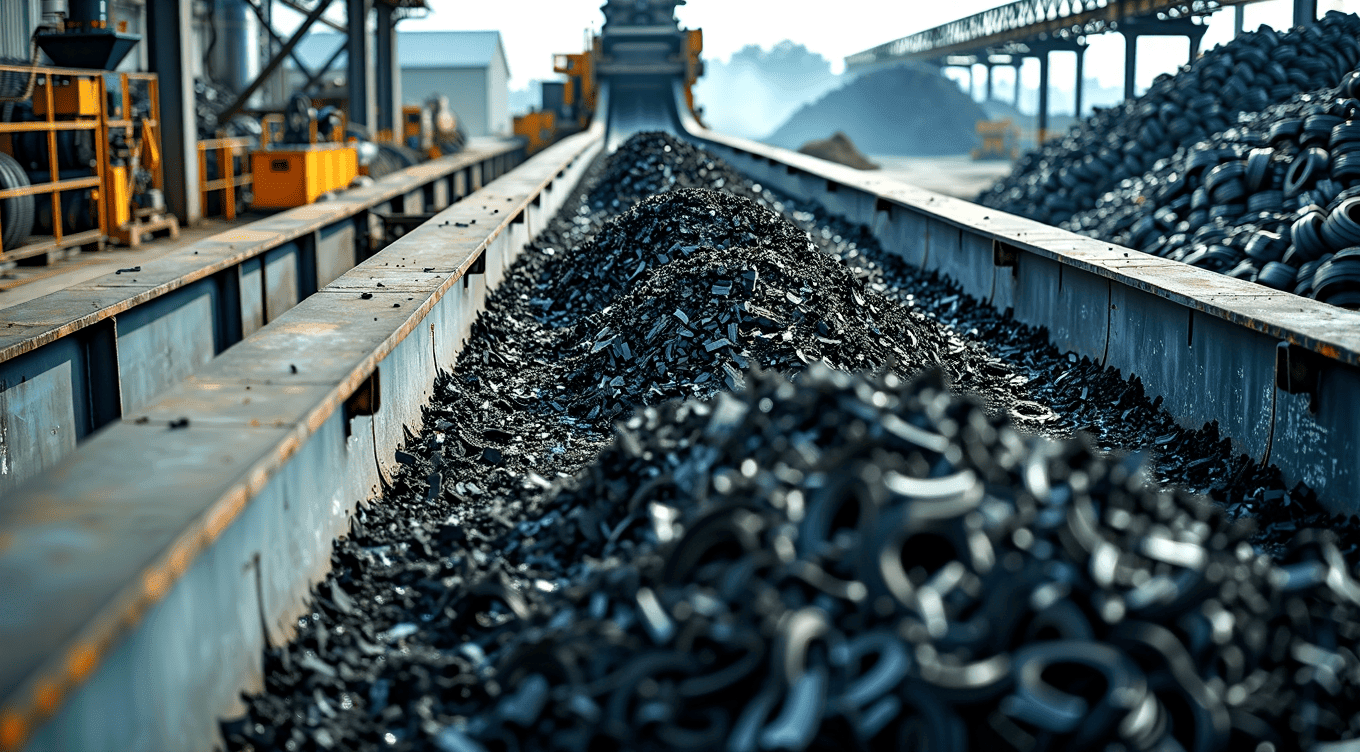

Our tire recycling conveyors are designed and manufactured in the USA to CEMA standards and tolerances.

• Goodyear, Flexco belt options resistant to rips, tears, and impacts
• Baldor, Leeson, Toshiba TEFC motors selected for 24/7 operation

• ASTM A36 steel for fabrication per structural code
• Premium bearings sized for L10 life ratings, made in USA
• Dodge, Nord, SEW drives matched to application torque
• All systems fabricated by certified welders for structural integrity
• Designed for simple maintenance access and component serviceability
• Extensively tested and inspected before shipment
• 3/16" and 1/4" thick structural steel frames to prevent flexing
• 25-35 pound rail track to withstand heavy loads

• Formed using heavy duty steel plate, rectangular tubing, and structural channel
• Precision components such as cold-rolled steel shafts and flame-hardened sprockets
• All hardware is grade 8 for maximum strength
• Painted with industrial grade powder coating for durability

Our tire recycling conveyors deliver exceptional durability, strength, and longevity, year after year.

Tire recycling involves breaking down used tires to retrieve rubber, steel, and fibers.

Reclaimed rubber, a major output of tire recycling, is used to pave roads, manufacture new tires, and create playground surfaces and landscaping materials. Not only does this industry help in waste reduction, but it also contributes to resource conservation by reducing the need for new raw materials.

1. The global tire recycling market size was valued at $12.9 billion in 2022 and is projected to reach $18.1 billion by 2032.
2. More than 1 billion waste tires, also known as End-of-Life Tires (ELTs), are generated across the world each year, accounting for 2% of total waste generated.
3. The U.S. alone generates approximately 280 million scrap tires each year.
4. Waste tires negatively impact the environment. Recycling them has a positive environmental impact.

Fluent Conveyors is proud to support tire recycling efforts with our line of high-quality conveyors.
